MINIMALSILENT
outside wall sliding systemfor glass doors

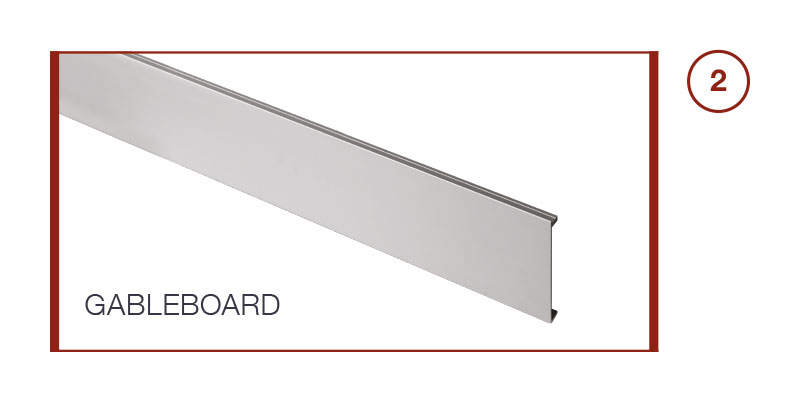

New minimal sliding system for glass doors with wall attachment and gableboard in aluminum, with section only 52mm x 85mm.
Designed for the installation of outside wall sliding glass doors with a light design to better adapt to any environment.
Designed for the installation of outside wall sliding glass doors with a light design to better adapt to any environment.
MINIMALSILENT
outside wall sliding systemfor glass doors
New minimal sliding system for glass doors with wall attachment and gableboard in aluminum, with section only 52mm x 85mm.
Designed for the installation of outside wall sliding glass doors with a light design to better adapt to any environment.
Designed for the installation of outside wall sliding glass doors with a light design to better adapt to any environment.
MINIMALSILENT
is a sliding system of small dimensions and modern and minimal design for internal glass doors.
The anodized aluminium profiles have a capacity of 80 kg.
Precise and silent scrolling derived from the Monosilent program.
The kits available for single door and double door are packaged in cardboard tubes.
MinimalSilent allows you to create highly aesthetic sliding doors.
- Linear design
- Movement fluid and noiseless by our MonoSilent program

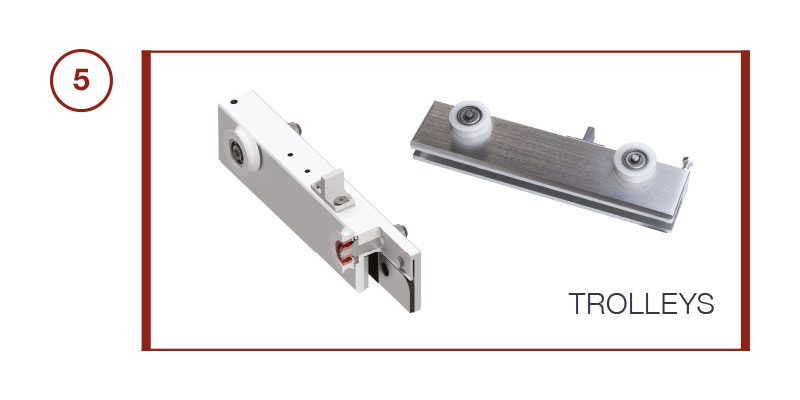

- Aluminum trolleys, nylon wheels with ball bearings

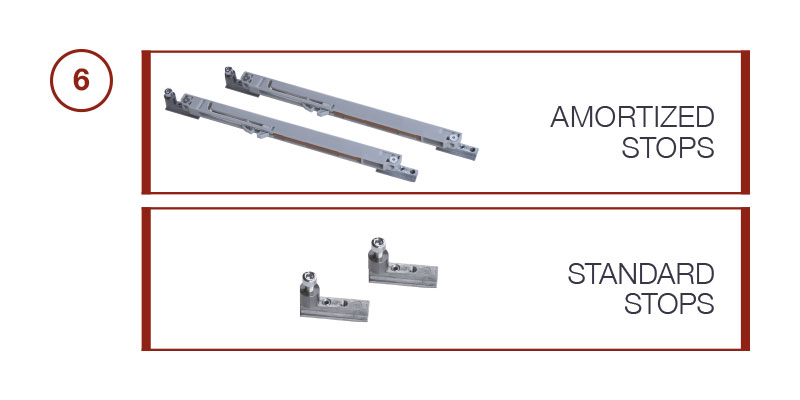

- Amortized stops

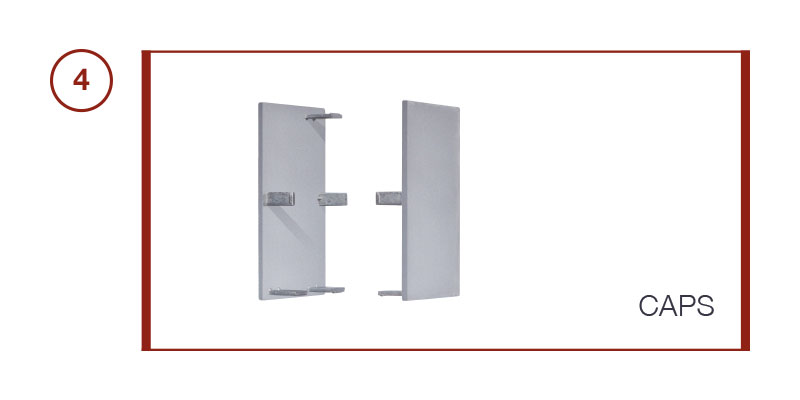

- Profiles and end caps in anodized aluminum
- Easy to install
- Available in 2 kits:for single door 2 mt and for double door 3 mt
- Individually adjustable trolleys
- Front application and installation
- Applicable on brick, concrete and glass walls
- Including anti-fleeting
- Designed for 8 and 10 mm thickness glass
cod. MINIMAL/V200
| Length | 2000 mm |
| Max capacity | 80 Kgs |
| Max wing width | 950 mm |
| Gableboard in anodized aluminum | x1 |
| Wall support profile in anodized aluminum with rail | x1 |
| End caps in anodized aluminum | x2 |
| Sliding trolleys to move 1 wing | x2 |
| Amortized stops | x2 |
cod. MINIMAL/V300
| Length | 3000 mm |
| Max capacity | 80 Kg |
| Max wing width | 700+700 mm |
| Gableboard in anodized aluminum | x1 |
| Wall support profile in anodized aluminum with rail | x1 |
| End caps in anodized aluminum | x2 |
| Sliding trolleys to move 1 wing | x2 |
| Amortized stops | x2 |
| Standard stops | x2 |
SUPPLIED IN RIGID TUBE
